氧气专用截止阀
详细介绍
氧气专用截止阀 Oxygen Globe Valve

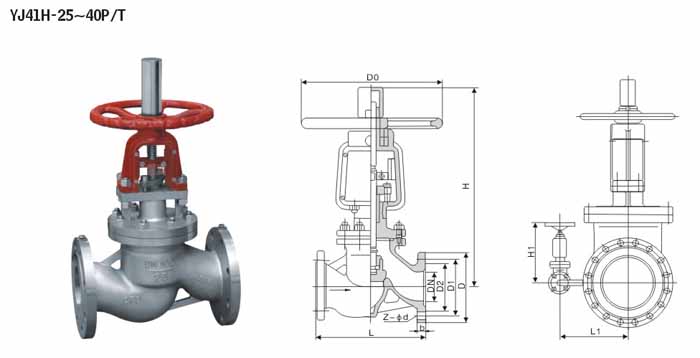

主要外形和连接尺寸Main External and Connection Dimension 单位 Unit：mm
|
公称通径
DN |
主要外形尺寸和连接尺寸（mm）Main External and Connection Dimension |
WT（kg） |
|
L |
D |
D1 |
D2 |
b |
Z-Φd |
Do |
H |
H1 |
L1 |
|
YJ41W-25P YJ41W-25T |
|
15 |
130 |
95 |
65 |
45 |
16 |
4-14 |
100 |
190 |
|
|
5 |
|
20 |
150 |
105 |
75 |
55 |
16 |
4-14 |
100 |
213 |
|
|
6.5 |
|
25 |
160 |
115 |
85 |
65 |
16 |
4-14 |
125 |
236 |
|
|
7 |
|
32 |
180 |
135 |
100 |
78 |
18 |
4-18 |
182 |
312 |
|
|
13.5 |
|
40 |
200 |
145 |
110 |
85 |
18 |
4-18 |
160 |
328 |
|
|
16 |
|
50 |
230 |
160 |
125 |
100 |
20 |
4-18 |
320 |
450 |
|
|
32 |
|
65 |
290 |
180 |
145 |
120 |
22 |
8-18 |
360 |
530 |
|
|
46 |
|
80 |
310 |
195 |
160 |
135 |
22 |
8-18 |
400 |
560 |
|
|
60 |
|
100 |
350 |
230 |
190 |
160 |
24 |
8-23 |
450 |
618 |
|
|
80 |
|
125 |
400 |
270 |
220 |
188 |
28 |
8-25 |
450 |
675 |
|
|
107 |
|
150 |
480 |
300 |
250 |
218 |
30 |
8-25 |
560 |
743 |
|
|
134 |
|
200 |
600 |
360 |
310 |
278 |
34 |
12-25 |
640 |
850 |
|
|
268.7 |
|
250 |
650 |
425 |
370 |
332 |
36 |
12-30 |
720 |
975 |
340 |
330 |
449 |
|
300 |
750 |
485 |
430 |
390 |
40 |
16-30 |
800 |
1115 |
340 |
415 |
663 |
|
400 |
950 |
610 |
550 |
505 |
48 |
16-34 |
900 |
1330 |
340 |
465 |
1170 |

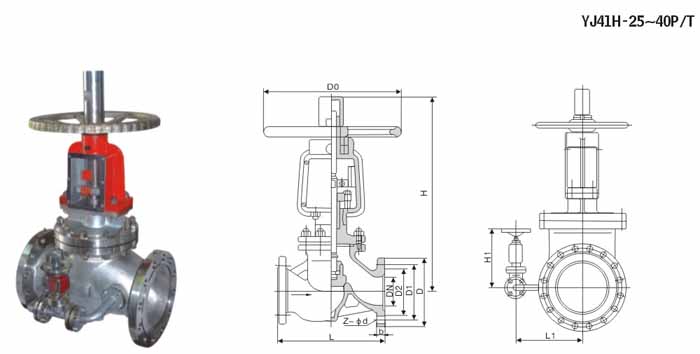

主要外形和连接尺寸Main External and Connection Dimension 单位 Unit：mm
|
公称通径
DN |
主要外形尺寸和连接尺寸（mm）Main External and Connection Dimension |
WT（kg） |
|
L |
D |
D1 |
D2 |
D6 |
b |
Z-Φd |
Do |
H |
H1 |
L1 |
|
YJ41W-40P YJ41W-40T |
|
15 |
130 |
95 |
65 |
45 |
40 |
16 |
4-14 |
100 |
202 |
|
|
5 |
|
20 |
150 |
105 |
75 |
55 |
51 |
16 |
4-14 |
100 |
225 |
|
|
6.5 |
|
25 |
160 |
115 |
85 |
65 |
58 |
16 |
4-14 |
125 |
236 |
|
|
7 |
|
32 |
180 |
135 |
100 |
78 |
66 |
18 |
4-18 |
180 |
312 |
|
|
13.5 |
|
40 |
200 |
145 |
110 |
85 |
76 |
18 |
4-18 |
260 |
328 |
|
|
16 |
|
50 |
230 |
160 |
125 |
100 |
88 |
20 |
4-18 |
320 |
450 |
|
|
32 |
|
65 |
290 |
180 |
145 |
120 |
110 |
22 |
8-18 |
360 |
530 |
|
|
45 |
|
80 |
310 |
195 |
160 |
135 |
121 |
22 |
8-18 |
400 |
560 |
|
|
60 |
|
100 |
350 |
230 |
190 |
160 |
150 |
24 |
8-23 |
450 |
618 |
|
|
80 |
|
125 |
400 |
270 |
220 |
188 |
176 |
28 |
8-25 |
450 |
675 |
|
|
105 |
|
150 |
480 |
300 |
250 |
218 |
204 |
30 |
8-25 |
560 |
743 |
|
|
134 |
|
200 |
600 |
375 |
320 |
282 |
260 |
38 |
12-30 |
640 |
850 |
|
|
266 |
|
250 |
650 |
445 |
385 |
345 |
313 |
42 |
12-34 |
720 |
975 |
380 |
340 |
491 |
|
300 |
750 |
510 |
450 |
408 |
364 |
46 |
16-34 |
800 |
1115 |
415 |
340 |
705 |
|
400 |
950 |
655 |
585 |
535 |
474 |
58 |
16-41 |
900 |
1425 |
465 |
340 |
1234 |
