美标过滤器
详细介绍

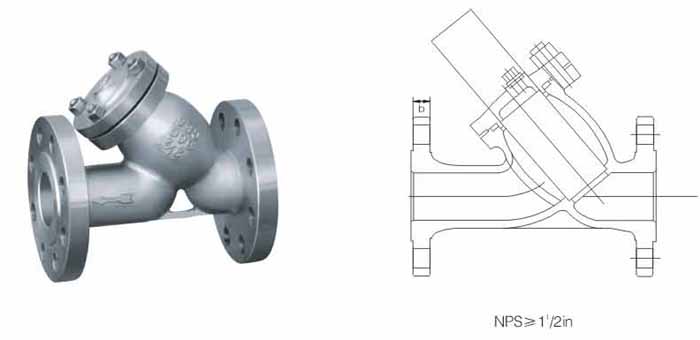

美标过滤器 APL Strainer
执行标准Administer Standard
|
设计与制造
Design And Manufacture |
结构长度
Face To Face |
法兰尺寸
Flange Dimension |
压力-温度
Pressure Temperature Laying |
试验-检验
Inspection And Test |
|
JIS B2071 B2081 |
JIS B2002 |
JIS B2212 B2214 |
JIS B2071 B2081 |
JIS B2003 |
|
ANSI B16.34 |
ANSI B16.34 |
ANSI 16.5 |
ANSI B16.34 |
API 598 |
压力试验Pressure Test
|
公称压力
Nominal Pressure |
强度试验Shell Test |
密封试管（液）Water Seal Test |
密封试验（气）Air Seal Test |
|
MPa |
Lbt/in² |
Mpa |
Lbt/in² |
Mpa |
Lbt/in² |
|
150 |
3.0 |
430 |
22 |
315 |
0.4-0.7 |
60-100 |
|
300 |
7.7 |
1110 |
5.7 |
815 |
主要零件材料及性能Main Part Materials and Property
|
体盖瓣摇杆导向套
Body Cover Disc Hinge Sideway bush |
滤网
Filter |
垫片
Sealing Shim |
工作温度℃
Working Temperature |
适用介质
Suitable Medium |
|
WCB |
SS316 |
增强柔性石墨
1Cr 13/柔性石墨
不锈钢/耐酸石棉
PTFE
齿型垫片
Enhanced
Flexible graphite
1Cr 13/ Flexible
Graphite
SS/Acid-proof
Asbestos
Tooth Profile Gasket |
□425℃ |
水，蒸气，油品
Water
Steam
Petroleum
Products |
|
WC1 |
□450℃ |
|
WC6 |
□540℃ |
|
WC9 |
□570℃ |
|
C5 C12 |
□540℃ |
|
CF8 |
□200℃ |
硝酸类，醋酸类
Nitric Acid
Acetic Acid |
|
CF8M |
|
CF3 |
SS316L |
|
CF3M |
主要技术参数Main technical parameter
|
型号
Model |
连接形式
Connection type |
公称压力
Nominal pressure |
耐压试验压力
Proof pressure |
工作压力
Working pressure |
壳体材料
Shell material |
过滤网
Filter screen |
网眼总面积
Mesh total area |
|
SY4P-10 |
法兰Flange |
1.0 |
1.1 |
1.0 |
灰铸铁Gray cast iron |
不锈钢
Stainless
steel |
3-4DN |
|
SY4P-16 |
法兰Flange |
1.6 |
1.76 |
1.6 |
球墨铸铁Spherical cast iron |
|
SY4P-25 |
法兰Flange |
2.5 |
2.75 |
2.5 |
碳钢Carbon steel |

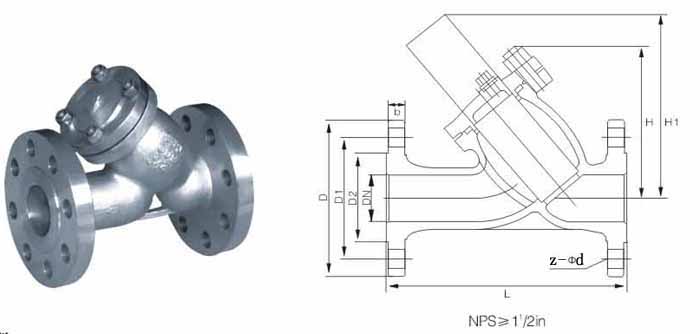

主要连接尺寸（API）Main external dimensions
|
公称型号Type |
公称通径DN |
d |
L |
o |
c |
z-Φd |
g |
t |
|
150Lb |
1/2" |
13 |
130 |
89 |
60.5 |
4-15 |
35 |
16 |
|
3/4" |
19 |
150 |
98 |
70 |
4-15 |
43 |
18 |
|
1" |
25.4 |
160 |
108 |
79.5 |
4-15 |
51 |
18 |
|
11/4" |
32 |
180 |
117 |
89 |
4-15 |
64 |
18 |
|
11/2" |
38.1 |
200 |
127 |
98.5 |
4-15 |
73 |
18 |
|
2" |
51 |
230 |
152 |
120.5 |
4-19 |
92 |
20 |
|
21/2" |
64 |
290 |
178 |
139.5 |
4-19 |
105 |
22 |
|
3" |
76 |
310 |
190 |
152.5 |
4-19 |
127 |
24 |
|
4" |
102 |
350 |
229 |
190.5 |
8-19 |
157 |
24 |
|
300Lb |
1/2" |
13 |
130 |
95 |
66.5 |
4-15 |
35 |
16 |
|
3/4" |
19 |
150 |
117 |
82.5 |
4-19 |
43 |
16 |
|
1" |
25.4 |
160 |
124 |
89 |
4-19 |
51 |
18 |
|
11/4" |
32 |
180 |
133 |
98.5 |
4-19 |
64 |
19 |
|
11/2" |
38.1 |
200 |
156 |
114.5 |
4-22 |
73 |
21 |
|
2" |
51 |
230 |
165 |
127 |
8-19 |
92 |
23 |
|
21/2" |
64 |
290 |
190 |
149 |
8-22 |
105 |
26 |
|
3" |
76 |
310 |
210 |
168.5 |
8-22 |
127 |
29 |
|
4" |
102 |
350 |
254 |
200 |
8-22 |
157 |
32 |
注：1.设计与制造符合MFG标准。2.试验与检验符合API598.
3.结构长度符合MFG标准。 4.法兰尺寸符合ANSI B16.5技术要求。
Note: 1. The design & manufacture accords with MFG standard. 2. The test & inspection accords with API598.
3. The length of structure accords with MFG standard. 4. The flange size accords with the technique requirements
of ANSI B16.5.
