美标不锈钢闸阀
详细介绍
美标不锈钢闸阀 ANSI Stainless Steel Gate Valve
特点： Feature
1.全通径，明杆带支架 1.Full port， outside screw and yoke（o s &y）
2.中法兰螺栓连接 2.Bolted bonnet
3.带向导的弹性闸板 3.Flexible wedge fully guided
4.阀杆升降，手轮不升降 4.Rising stem and non-rising hand wheel
5.伞齿轮操作选配 5.Avail able with gear operator
6.标准法兰连接 6.Flanged ends
7.对焊连接 7.Butt-welding ends
产品规范Product Specification
|
产品规范
Product
Specification |
设计规范
Design Spec |
结构长度
Face to Face |
连接法兰
Flanged End |
试验与检验
Test &Check |
压力-温度
Pressure-Temp |
产品标识
Marking |
供货规范
Supply |
|
API600 |
ANSI B16.10 |
ANSI B16.5 |
API598 |
ASME B16.34 |
API6D |
API600 |
|
API6D |
API6D |
API6D |
MSS SP-25 |
材料列表Material List
|
零件名称 |
零部件材料Part Material |
Part Name |
|
阀体/阀盖 |
A216-WCB |
A217-WC6 |
A352-LCB |
A351-CF8M |
Body/Bonnet |
|
闸板 |
A216-WCB |
A217-WC6 |
A352-LCB |
A351-CF8M |
Wedge |
|
阀杆 |
A182-F6a |
A182-F11 |
A182-F6a |
A182-F316 |
Stem |
|
填料 |
柔性石墨/ Flexible Graphite |
聚四氟乙烯/PTFE |
Packing |
|
垫片 |
18-8柔性石墨/18-8Flexible Graphite |
Gasket |
|
螺栓 |
A193-B7 |
A193-B7 |
A193-B7M |
A193-B8 |
Bolt |
|
适用温度 |
-29~425℃ |
-29~550℃ |
-46~350℃ |
-40~200℃ |
Suitable Temp |
|
适用介质 |
水，油品，蒸汽
Water，Oil，Steam |
蒸汽，油品
Steam，Oil |
丙烷，乙烯
Propane，Ethane |
硝酸类
Nitric Acid |
Suitable Medium |

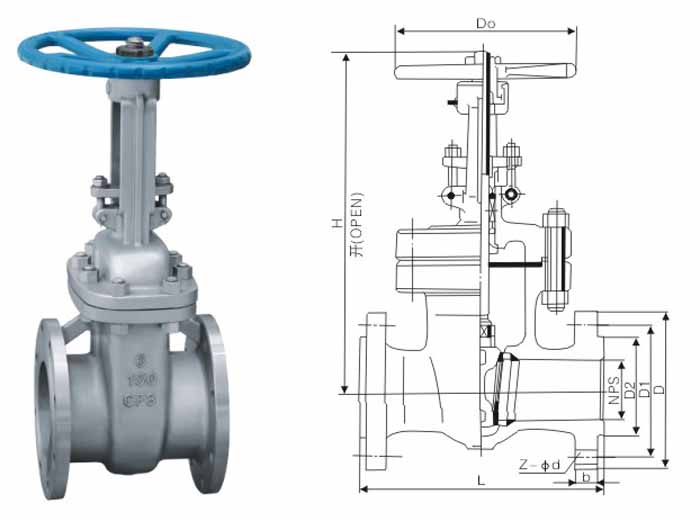

尺寸列表Dimension List 单位 Unit: mm
|
产品型号
Type |
NPS |
DN |
Class 150Lb |
WT（kg） |
|
in |
mm |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
D0 |
|
Z40H-150Lb
(Body:WCB)
Z40W-150LbP
(Body:CF8)
Z40Y-150LbP
(Body:CF8)
Z40Y-150LbR
(Body:CF8M)
Z40Y-150LbPL
(Body:CF3)
Z40Y-150LbRL
(Body:CF3M) |
2" |
50 |
178 |
152 |
120.5 |
92 |
16 |
4-Φ19 |
323 |
200 |
18 |
|
21/2" |
65 |
190 |
178 |
139.5 |
105 |
18 |
4-Φ19 |
347 |
250 |
28 |
|
3" |
80 |
203 |
190 |
152.5 |
127 |
19 |
4-Φ19 |
383 |
250 |
30 |
|
4" |
100 |
229 |
229 |
190.5 |
157 |
24 |
8-Φ19 |
457 |
300 |
50 |
|
5" |
125 |
254 |
254 |
216 |
186 |
24 |
8-Φ22 |
632 |
300 |
63 |
|
6" |
150 |
267 |
279 |
241.5 |
216 |
26 |
8-Φ22 |
635 |
350 |
85 |
|
8" |
200 |
292 |
343 |
298.5 |
270 |
29 |
8-Φ22 |
762 |
350 |
128 |
|
10" |
250 |
330 |
406 |
362 |
324 |
31 |
12-Φ25 |
895 |
400 |
220 |
|
12" |
300 |
356 |
483 |
432 |
381 |
32 |
12-Φ25 |
1080 |
500 |
310 |
|
14" |
350 |
381 |
533 |
476 |
413 |
35 |
12-Φ29 |
1295 |
600 |
450 |
|
16" |
400 |
406 |
597 |
540 |
470 |
37 |
16-Φ29 |
1435 |
600 |
550 |
|
18" |
450 |
432 |
635 |
578 |
533 |
40 |
16Φ32 |
1626 |
650 |
700 |
|
20" |
500 |
457 |
699 |
635 |
584 |
43 |
20Φ32 |
1829 |
650 |
910 |
|
24" |
600 |
508 |
813 |
749.5 |
692 |
48 |
20Φ35 |
2175 |
700 |
1130 |
尺寸列表Dimension List 单位 Unit: mm
|
产品型号
Type |
NPS |
DN |
Class 300Lb |
WT（kg） |
|
in |
mm |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
D0 |
|
Z40H-300Lb
(Body:WCB)
Z40W-300LbP
(Body:CF8)
Z40Y-300LbP
(Body:CF8)
Z40Y-300LbR
(Body:CF8M)
Z40Y-300LbPL
(Body:CF3)
Z40Y-300LbRL
(Body:CF3M) |
2" |
50 |
216 |
165 |
127 |
92 |
22 |
8-Φ19 |
330 |
250 |
30 |
|
21/2" |
65 |
241 |
190 |
149 |
105 |
25 |
8-Φ22 |
368 |
250 |
36 |
|
3" |
80 |
283 |
210 |
168.5 |
127 |
29 |
8-Φ22 |
394 |
300 |
61 |
|
4" |
100 |
305 |
254 |
200 |
157 |
32 |
8-Φ22 |
473 |
300 |
77 |
|
5" |
125 |
381 |
279 |
235 |
186 |
35 |
8-Φ22 |
660 |
350 |
106 |
|
6" |
150 |
403 |
318 |
270 |
216 |
37 |
12-Φ22 |
711 |
350 |
153 |
|
8" |
200 |
419 |
381 |
330 |
270 |
41 |
12-Φ25 |
813 |
400 |
286 |
|
10" |
250 |
457 |
444 |
387.5 |
324 |
48 |
16-Φ29 |
1003 |
500 |
412 |
|
12" |
300 |
502 |
521 |
451 |
381 |
51 |
16Φ32 |
1137 |
600 |
576 |
|
14" |
350 |
762 |
584 |
514.5 |
413 |
54 |
20Φ32 |
1489 |
600 |
886 |
|
16" |
400 |
838 |
648 |
571.5 |
470 |
57 |
20Φ35 |
1581 |
650 |
1175 |
尺寸列表Dimension List 单位 Unit: mm
|
产品型号
Type |
NPS |
DN |
Class 600Lb |
WT（kg） |
|
in |
mm |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
D0 |
|
Z40H-600Lb
(Body:WCB)
Z40W-600LbP
(Body:CF8)
Z40Y-600LbP
(Body:CF8)
Z40Y-600LbR
(Body:CF8M)
Z40Y-600LbPL
(Body:CF3)
Z40Y-600LbRL
(Body:CF3M) |
2" |
50 |
292 |
165 |
127 |
92 |
26 |
8-Φ19 |
510 |
254 |
44 |
|
21/2" |
65 |
330 |
190 |
149 |
105 |
29 |
8-Φ22 |
554 |
254 |
60 |
|
3" |
80 |
356 |
210 |
168.5 |
127 |
32 |
8-Φ22 |
595 |
305 |
80 |
|
4" |
100 |
432 |
273 |
216 |
157 |
38 |
8-Φ25 |
712 |
356 |
145 |
|
5" |
125 |
508 |
330 |
266.5 |
186 |
45 |
8-Φ29 |
826 |
406 |
236 |
|
6" |
150 |
559 |
356 |
292 |
216 |
48 |
12-Φ29 |
995 |
508 |
309 |
|
8" |
200 |
660 |
419 |
349 |
270 |
56 |
12-Φ32 |
1157 |
610 |
522 |
|
10" |
250 |
787 |
508 |
432 |
324 |
64 |
16-Φ35 |
1373 |
686 |
779 |
|
12" |
300 |
838 |
559 |
489 |
381 |
67 |
20-Φ35 |
1603 |
686 |
1108 |
|
14" |
350 |
889 |
603 |
527 |
413 |
70 |
20-Φ38 |
1930 |
762 |
1503 |
|
16" |
400 |
991 |
686 |
603 |
470 |
77 |
20-Φ41 |
2032 |
889 |
1939 |
|
18" |
450 |
1092 |
743 |
654 |
533 |
90 |
20-Φ44 |
2286 |
889 |
2733 |
|
20" |
500 |
1194 |
813 |
724 |
584 |
96 |
24-Φ44 |
2591 |
1118 |
3214 |
|
24" |
600 |
1397 |
940 |
838 |
692 |
109 |
24-Φ52 |
3124 |
1118 |
4177 |
